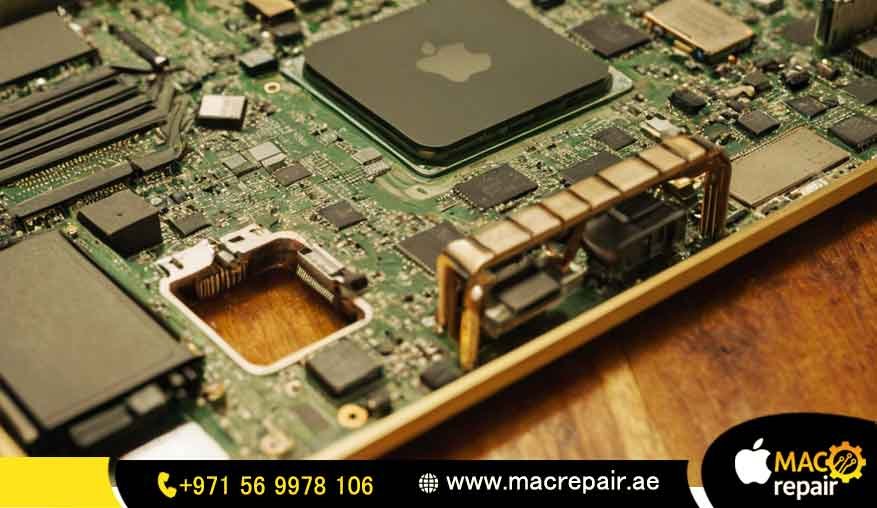

MacBook M3 Motherboard Repair in Dubai: 3nm Logic Board Micro-Soldering
An in-depth guide to repairing Apple M3, M3 Pro, and M3 Max logic boards in Dubai. Discover how 3nm semiconductor scaling impacts power rail repair, PMIC sequencing, and data integrity.
Advanced 3nm Apple Silicon M3 Logic Board Diagnostics & Repair in Dubai
The Apple M3 processor series—engineered on TSMC leading 3-nanometer lithography node across the base M3, M3 Pro, and M3 Max chips—represents one of the most sophisticated computing architectures ever integrated into portable hardware. By condensing billions of transistors into a unified System on Chip (SoC) combining CPU, GPU, Neural Engine, and Unified Memory (LPDDR5X), the M3 motherboard demands an exceptional degree of microscopic precision when electrical faults or physical damage occur.
When an M3 MacBook Pro or MacBook Air suddenly refuses to power on, stops charging via MagSafe 3 or USB-C, or suffers sudden power surges, official Apple Authorized service centers offer only one solution: replacing the entire logic board at astronomical costs often exceeding AED 3,500, with complete loss of all unbacked-up data. At MacRepair Dubai, our laboratory engineers specialize in component-level micro-soldering, pinpointing and replacing the exact failed chips on the board while preserving your original hardware and vital personal data.
Common Electrical Failure Symptoms on Apple M3 Logic Boards
USB-C Power Delivery Stuck at 5V
Under standard operational protocols, when a USB-C PD charger is connected, communication between the charger and the logic board CD3217 / TPS62180 power management controllers negotiates a switch from 5V baseline up to 20V. A damaged communication line or shorted protection diode keeps the system stuck at 5V 0.00A, preventing battery charging and logic board startup.
PPBUS_G3H Short Circuit to Ground
The primary power distribution line on Apple Silicon boards (PPBUS_G3H, typically 12.3V - 12.6V) powers downstream buck converters supplying the M3 SoC, NAND storage, and display controllers. A single shorted ceramic capacitor or failed MOSFET pulls this primary rail to ground, immediately triggering the internal ISL9240 power controller into safety shutdown.
Sudden PMIC Overheating & High Fan Spin
A degraded secondary Power Management IC (PMIC) or shorted inductor can cause thermal runaway. Fans may instantly rev to maximum RPM while the machine remains completely black, unable to complete its internal hardware boot sequencing.
DFU Mode Detection (Kernel Deadlock)
Corrupted power delivery to the Secure Enclave or flash storage controllers can lock the M3 processor into Device Firmware Update (DFU) mode. Without diagnostic hardware, the laptop appears completely dead, showing zero display output and no fan movement.
Our Laboratory Diagnostic & Micro-Soldering Methodology
Board-level repairs at MacRepair Dubai follow rigorous electronic engineering procedures inside our cleanroom diagnostic environment in Al Barsha 1:
- Digital Power Analysis: We connect the M3 motherboard to specialized inline USB-C digital multimeters and bench power supplies, measuring initial milliamp draw and power handshake protocols.
- Thermal Imaging (FLIR) Short Detection: By injecting controlled low voltage into suspected shorted power rails and observing the board under high-resolution infrared thermal imaging, our engineers visually identify micro-components heating up due to short-to-ground faults without stressing adjacent 3nm processor circuits.
- Microscope Precision Micro-Soldering: Utilizing high-magnification stereo microscopes and programmable infrared rework stations, defective capacitors, diodes, or BGA chips are desoldered and replaced with authentic factory components.
- Power Rail Verification & Oscilloscope Waveform Check: After component replacement, all primary and secondary power rails (PPBUS_G3H, 3V3_G3H, PPVDD_CPU) are verified with digital storage oscilloscopes to confirm clean, ripple-free voltage delivery.
- Extensive Stress & Benchmark Burn-in: The fully assembled MacBook undergoes 24 hours of synthetic hardware stress testing (CPU, GPU, memory bandwidth, and thermal dissipation) to guarantee rock-solid long-term reliability.
MacBook M3 Motherboard Repair vs Apple Replacement Cost
| Repair Category | MacRepair Dubai Cost (AED) | Apple Authorized Cost (AED) | Data Preservation |
|---|---|---|---|
| Power Rail Short Circuit Repair (PPBUS_G3H) | AED 750 - AED 950 | AED 3,200 - AED 4,500 | 100% Data Preserved |
| USB-C Power Delivery & Charging IC Replacement | AED 650 - AED 850 | AED 3,200 - AED 4,500 | 100% Data Preserved |
| Complex Multi-Rail PMIC & Mosfet Rebuild | AED 1,150 - AED 1,650 | AED 3,800 - AED 5,200 | 100% Data Preserved |
Frequently Asked Questions: MacBook M3 Motherboard Repair
Can you fix an M3 motherboard that completely died without any warning?
Yes. In over 85% of sudden death cases on Apple Silicon boards, the fault is caused by an isolated short circuit on a power filtering capacitor or a failed charging controller rather than the M3 processor itself. We locate and replace the failed component, restoring the board to full working condition.
Will my files and photos be safe during motherboard repair?
Yes. Because we repair your existing motherboard at the component level rather than swapping it out, your soldered NAND flash storage and Secure Enclave pairing remain intact, preserving your data.
How long does an M3 logic board diagnosis and repair take?
Initial diagnostic assessment is completed within 2 to 4 hours. Once approved, micro-soldering repairs are typically completed within 24 to 48 hours at our Al Barsha 1 laboratory.
What warranty do you provide on motherboard micro-soldering?
All motherboard repairs include our comprehensive 3-month to 6-month warranty covering the repaired circuits, replaced components, and power stability.
