MacBook M2 Motherboard Repair in Dubai: Component-Level Engineering & Power Delivery Fixes
Expert micro-soldering solutions for Apple Silicon M2 MacBook Air (A2681) and MacBook Pro (A2779/A2780). How our Dubai engineers diagnose MagSafe 3 power surges and VRM failures.

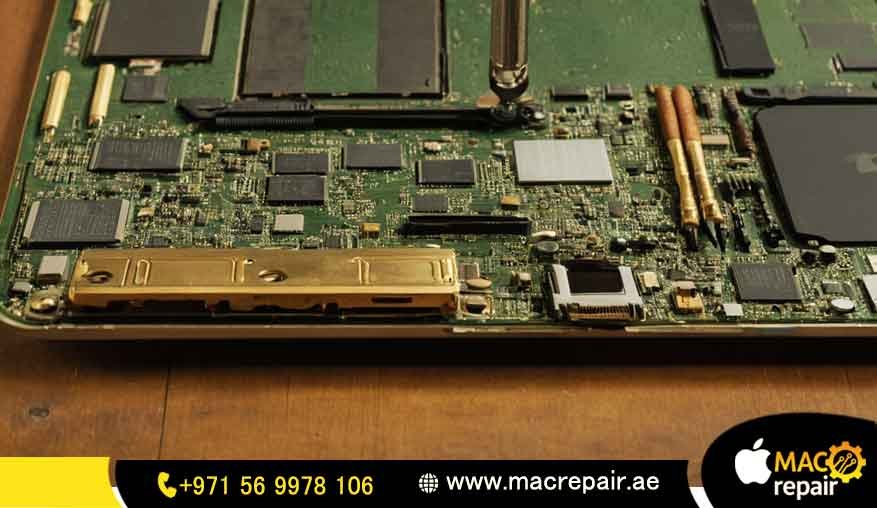

Advanced Apple Silicon M2 Logic Board Engineering in Dubai
The introduction of Apple’s second-generation M2 silicon brought significant performance gains to the redesigned MacBook Air (A2681, A2941) and MacBook Pro (A2779, A2780). However, the ultra-slim chassis profiles and concentrated thermal output of the M2 series introduced unique electrical challenges to the logic board circuitry. In Dubai’s intense ambient heat, localized thermal stress around the Voltage Regulator Modules (VRM) and power delivery chips can lead to unexpected circuit failure.
At MacRepair Dubai, our dedicated cleanroom engineering laboratory in Al Barsha 1 specializes in microscopic logic board restoration. Rather than forcing clients into exorbitant board replacement costs, our certified Apple hardware engineers isolate failed semiconductor packages, replace damaged inductors, and restore OEM factory voltages with laboratory precision.
Common Hardware Vulnerabilities in Apple M2 Architectures
Through extensive diagnostic case histories handled at our Dubai facility, we have mapped the most frequent hardware failure points specific to Apple M2 logic boards:
Texas Instruments USB-PD Burnout
Fluctuations during fast-charging via MagSafe 3 or multi-monitor Thunderbolt docks can exceed the rated breakdown voltage of the Texas Instruments TPS6598x power delivery chips, causing immediate dead-state shorts.
M2 Air Fanless VRM Fatigue
Because the 13-inch and 15-inch M2 MacBook Air models lack an active internal fan, prolonged heavy video editing or 3D rendering causes the power inductors to cycle between extreme temperatures, fracturing solder joints.
NAND Power Rail Drops
Base 256GB M2 configurations utilize a single high-density NAND chip. If the localized 2.5V or 1.8V flash power supply drops due to a shorted decoupling capacitor, the system triggers a kernel panic and halts bootup.
Our 5-Stage M2 Board Diagnostic Protocol
-
1
Inline Power Negotiation Analysis: Using programmable digital USB-C sniffers, we monitor VBUS and CC lines to identify whether the board attempts power negotiation or remains frozen at 5V.
-
2
Thermal Radiometry Probing: The board is connected to a bench power supply with current limiting, and high-resolution thermal imaging cameras detect heat signatures as small as 0.05°C to pinpoint shorted SMD capacitors.
-
3
Schematic & Boardview Mapping: Engineers trace the circuit topology using proprietary Apple Silicon M2 vector schematics to verify upstream and downstream gate voltages on switching MOSFETs.
-
4
Precision BGA Micro-Soldering: Faulty chips are desoldered under infrared preheating and replaced with brand-new OEM components using leaded eutectic solder paste for maximum thermal durability.
-
5
Apple Configurator DFU & Hardware Burn-in: The machine is booted into Device Firmware Update (DFU) mode to restore system firmware without wiping user partitions, followed by 12 hours of synthetic GPU/CPU stress testing.
Explore Comprehensive Apple Support in Dubai
Need urgent recovery for your critical data? Check out our MacBook Data Recovery in UAE cleanroom service. If your screen was physically impacted during an accident, view our MacBook Screen Repair in Dubai options.
Frequently Asked Questions: MacBook M2 Logic Board Repair
How much does MacBook M2 motherboard repair cost in Dubai?
Most M2 logic board micro-soldering repairs at MacRepair Dubai range between AED 550 and AED 1,100, depending on whether USB-PD controllers, PMIC circuitry, or power MOSFETs failed. In contrast, Apple Authorized centers charge AED 2,400 to AED 3,600 for a total board replacement.
Can you fix an M2 MacBook that shows a blinking orange MagSafe light?
Yes. A blinking orange MagSafe indicator signals that the System Management Controller (SMC) firmware within the M2 SoC has detected an electrical fault or thermal anomaly and tripped the over-current protection circuit. We trace and resolve the underlying power rail short.
Do you offer express repair for corporate professionals in Dubai?
Yes. We provide priority emergency diagnostics for clients in Downtown Dubai, DIFC, Business Bay, Dubai Marina, and JLT, with expedited 24-hour turnaround and safe door-to-door courier logistics.
Will my Apple warranty be affected?
If your MacBook is already outside its 1-year limited warranty or has been declined coverage due to liquid ingress or electrical surges, our component-level repair restores your machine with our independent 6 to 12-month warranty without paying full retail replacement prices.
Is there any diagnostic fee if the machine cannot be revived?
No. We maintain an unconditional "No Fix, No Fee" policy. If the M2 logic board is found to be unrepairable, no fee is charged.
